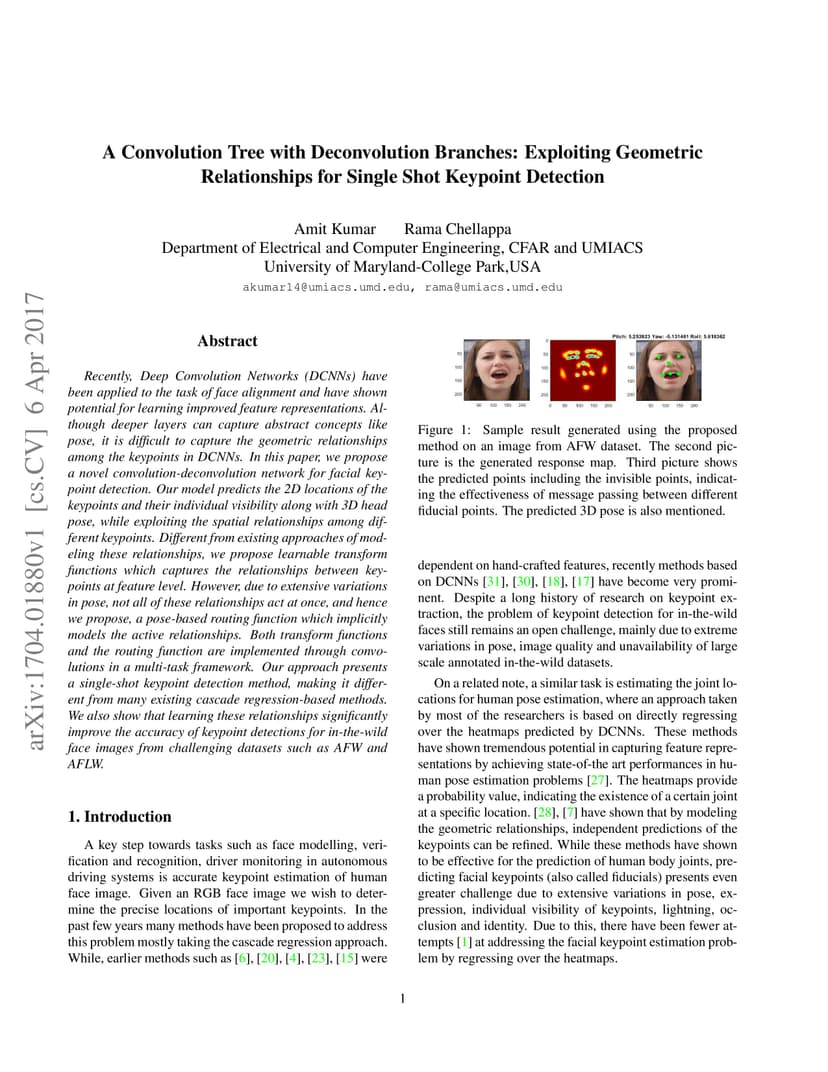

Recently, Deep Convolution Networks (DCNNs) have been applied to the task of face alignment and have shown potential for learning improved feature representations. Although deeper layers can capture abstract concepts like pose, it is difficult to capture the geometric relationships among the keypoints in DCNNs. In this paper, we propose a novel convolution-deconvolution network for facial keypoint detection. Our model predicts the 2D locations of the keypoints and their individual visibility along with 3D head pose, while exploiting the spatial relationships among different keypoints. Different from existing approaches of modeling these relationships, we propose learnable transform functions which captures the relationships between keypoints at feature level. However, due to extensive variations in pose, not all of these relationships act at once, and hence we propose, a pose-based routing function which implicitly models the active relationships. Both transform functions and the routing function are implemented through convolutions in a multi-task framework. Our approach presents a single-shot keypoint detection method, making it different from many existing cascade regression-based methods. We also show that learning these relationships significantly improve the accuracy of keypoint detections for in-the-wild face images from challenging datasets such as AFW and AFLW.
