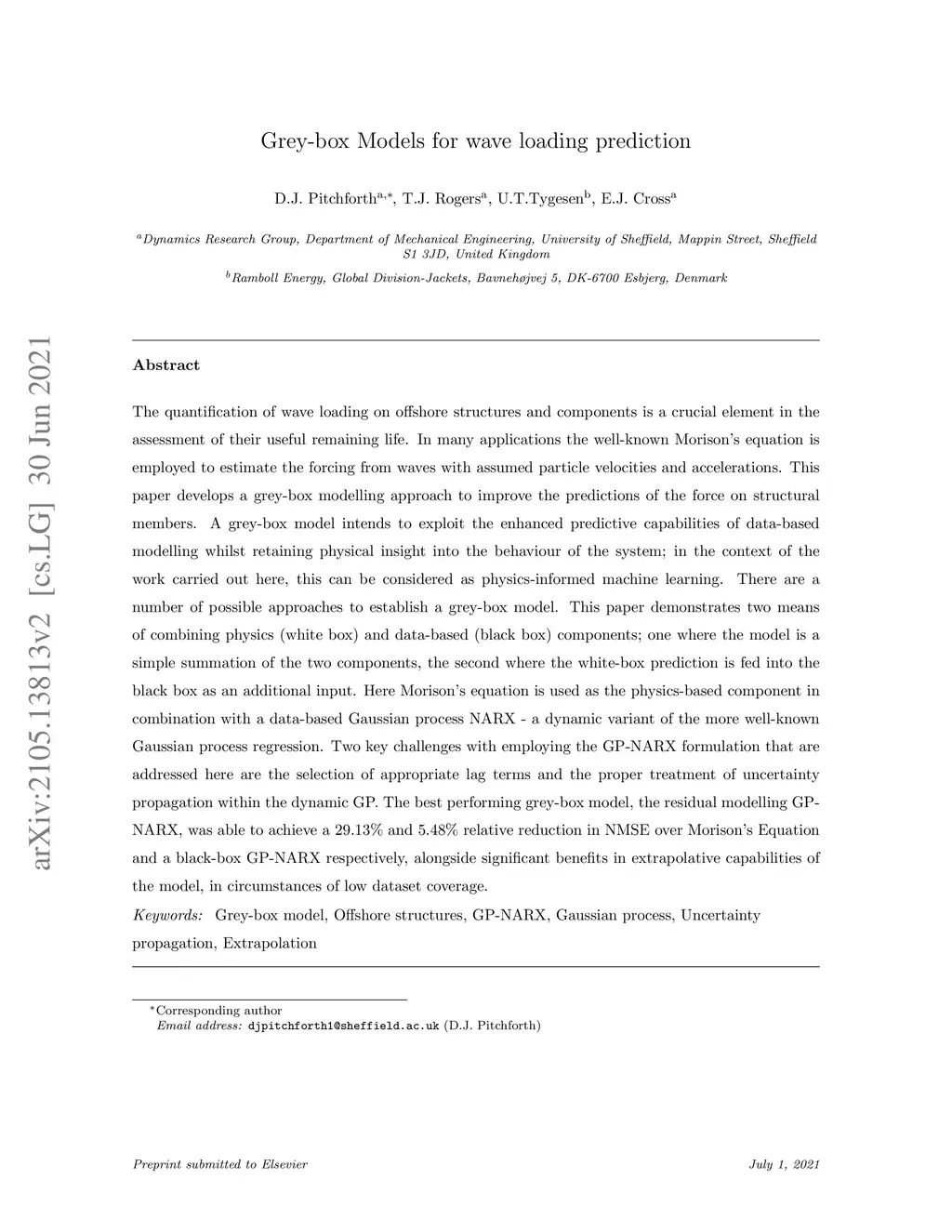

The quantification of wave loading on offshore structures and components is a crucial element in the assessment of their useful remaining life. In many applications the well-known Morison's equation is employed to estimate the forcing from waves with assumed particle velocities and accelerations. This paper develops a grey-box modelling approach to improve the predictions of the force on structural members. A grey-box model intends to exploit the enhanced predictive capabilities of data-based modelling whilst retaining physical insight into the behaviour of the system; in the context of the work carried out here, this can be considered as physics-informed machine learning. There are a number of possible approaches to establish a grey-box model. This paper demonstrates two means of combining physics (white box) and data-based (black box) components; one where the model is a simple summation of the two components, the second where the white-box prediction is fed into the black box as an additional input. Here Morison's equation is used as the physics-based component in combination with a data-based Gaussian process NARX - a dynamic variant of the more well-known Gaussian process regression. Two key challenges with employing the GP-NARX formulation that are addressed here are the selection of appropriate lag terms and the proper treatment of uncertainty propagation within the dynamic GP. The best performing grey-box model, the residual modelling GP-NARX, was able to achieve a 29.13\% and 5.48\% relative reduction in NMSE over Morison's Equation and a black-box GP-NARX respectively, alongside significant benefits in extrapolative capabilities of the model, in circumstances of low dataset coverage.
