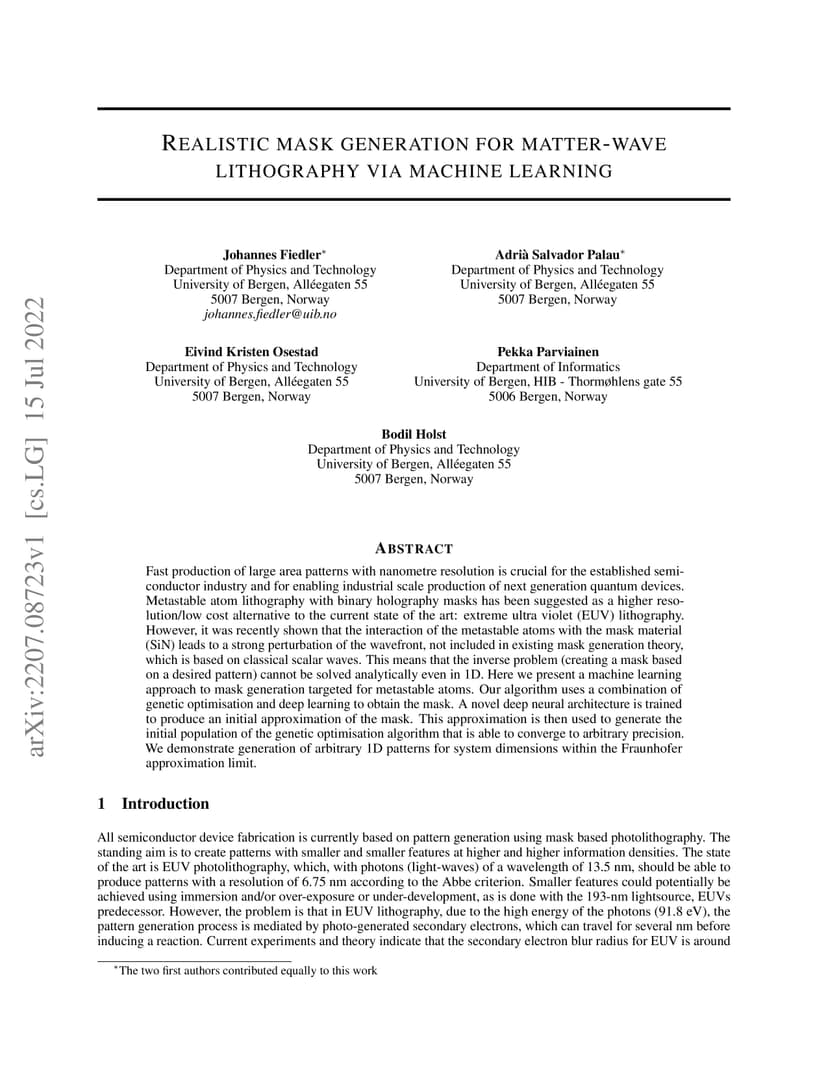

Fast production of large area patterns with nanometre resolution is crucial for the established semiconductor industry and for enabling industrial-scale production of next-generation quantum devices. Metastable atom lithography with binary holography masks has been suggested as a higher resolution/low-cost alternative to the current state of the art: extreme ultraviolet (EUV) lithography. However, it was recently shown that the interaction of the metastable atoms with the mask material (SiN) leads to a strong perturbation of the wavefront, not included in existing mask generation theory, which is based on classical scalar waves. This means that the inverse problem (creating a mask based on the desired pattern) cannot be solved analytically even in 1D. Here we present a machine learning approach to mask generation targeted for metastable atoms. Our algorithm uses a combination of genetic optimisation and deep learning to obtain the mask. A novel deep neural architecture is trained to produce an initial approximation of the mask. This approximation is then used to generate the initial population of the genetic optimisation algorithm that can converge to arbitrary precision. We demonstrate the generation of arbitrary 1D patterns for system dimensions within the Fraunhofer approximation limit.
