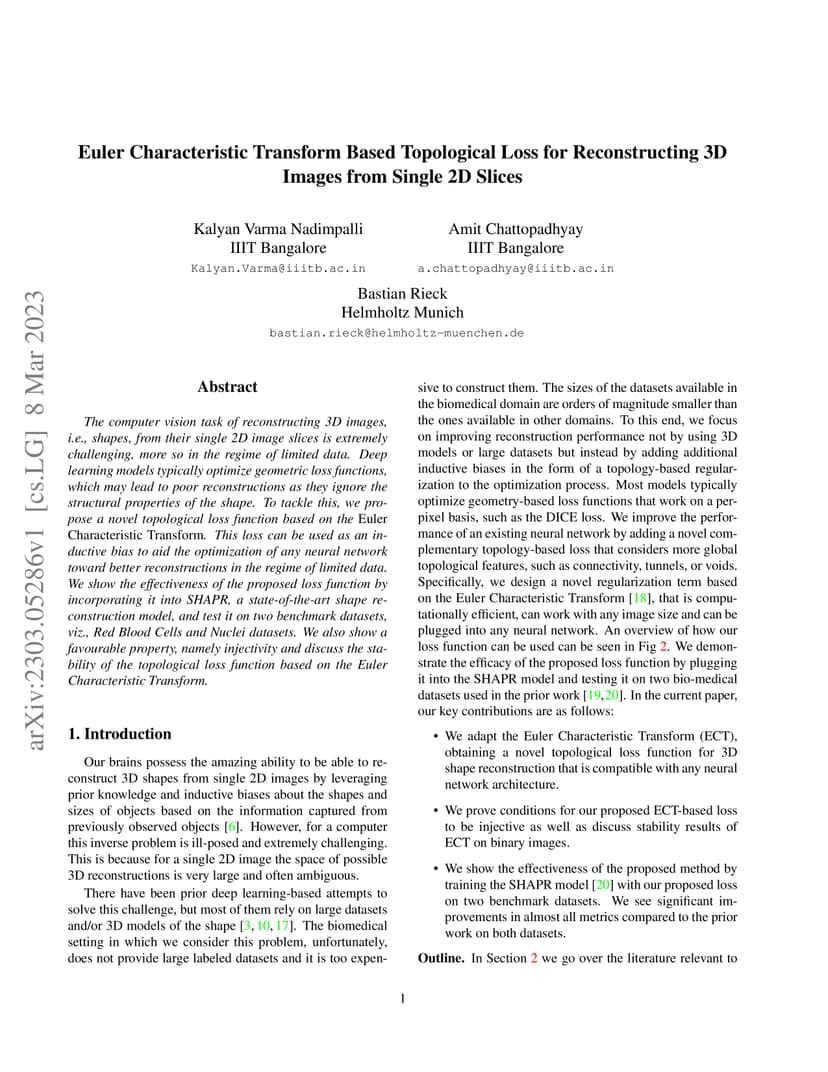

Euler Characteristic Transform Based Topological Loss for Reconstructing 3D Images from Single 2D Slices

8 March 2023
K. Nadimpalli
A. Chattopadhyay
Bastian Alexander Rieck
ArXivPDFHTML
Abstract

The computer vision task of reconstructing 3D images, i.e., shapes, from their single 2D image slices is extremely challenging, more so in the regime of limited data. Deep learning models typically optimize geometric loss functions, which may lead to poor reconstructions as they ignore the structural properties of the shape. To tackle this, we propose a novel topological loss function based on the Euler Characteristic Transform. This loss can be used as an inductive bias to aid the optimization of any neural network toward better reconstructions in the regime of limited data. We show the effectiveness of the proposed loss function by incorporating it into SHAPR, a state-of-the-art shape reconstruction model, and test it on two benchmark datasets, viz., Red Blood Cells and Nuclei datasets. We also show a favourable property, namely injectivity and discuss the stability of the topological loss function based on the Euler Characteristic Transform.

View on arXiv
