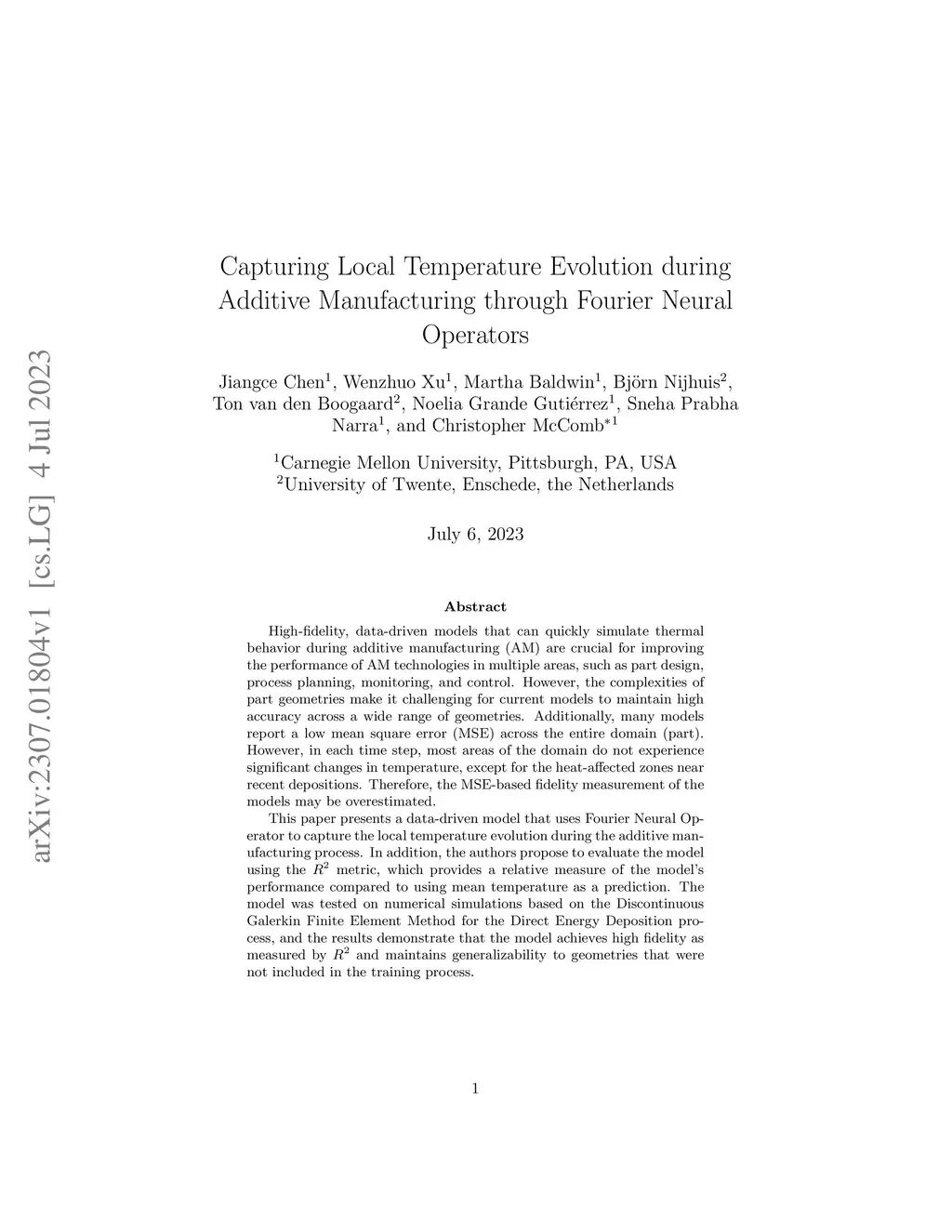

Capturing Local Temperature Evolution during Additive Manufacturing through Fourier Neural Operators

4 July 2023
Jiangce Chen
Wenzhuo Xu
Martha Baldwin
Björn Nijhuis
T. Boogaard
Noelia Grande Gutiérrez
S. Narra
Christopher McComb
    AI4CE
ArXivPDFHTML
Abstract

High-fidelity, data-driven models that can quickly simulate thermal behavior during additive manufacturing (AM) are crucial for improving the performance of AM technologies in multiple areas, such as part design, process planning, monitoring, and control. However, the complexities of part geometries make it challenging for current models to maintain high accuracy across a wide range of geometries. Additionally, many models report a low mean square error (MSE) across the entire domain (part). However, in each time step, most areas of the domain do not experience significant changes in temperature, except for the heat-affected zones near recent depositions. Therefore, the MSE-based fidelity measurement of the models may be overestimated. This paper presents a data-driven model that uses Fourier Neural Operator to capture the local temperature evolution during the additive manufacturing process. In addition, the authors propose to evaluate the model using the R2R^2R2 metric, which provides a relative measure of the model's performance compared to using mean temperature as a prediction. The model was tested on numerical simulations based on the Discontinuous Galerkin Finite Element Method for the Direct Energy Deposition process, and the results demonstrate that the model achieves high fidelity as measured by R2R^2R2 and maintains generalizability to geometries that were not included in the training process.

View on arXiv
