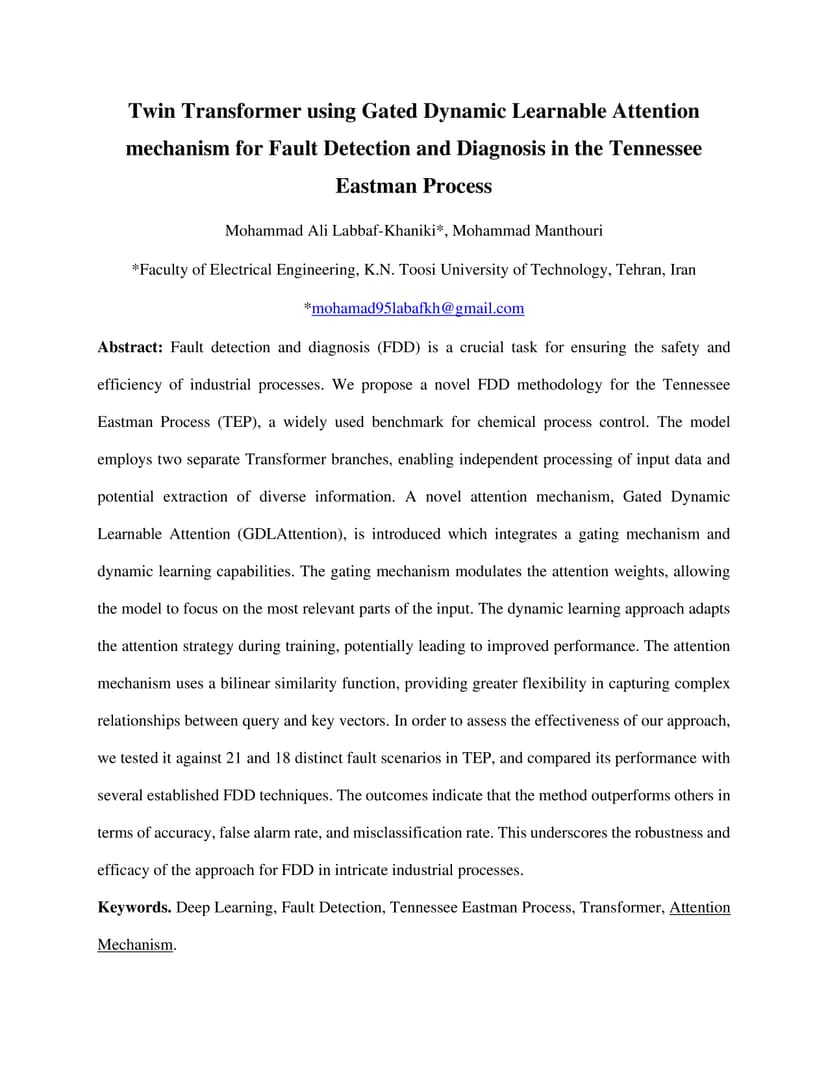

Fault detection and diagnosis (FDD) is a crucial task for ensuring the safety and efficiency of industrial processes. We propose a novel FDD methodology for the Tennessee Eastman Process (TEP), a widely used benchmark for chemical process control. The model employs two separate Transformer branches, enabling independent processing of input data and potential extraction of diverse information. A novel attention mechanism, Gated Dynamic Learnable Attention (GDLAttention), is introduced which integrates a gating mechanism and dynamic learning capabilities. The gating mechanism modulates the attention weights, allowing the model to focus on the most relevant parts of the input. The dynamic learning approach adapts the attention strategy during training, potentially leading to improved performance. The attention mechanism uses a bilinear similarity function, providing greater flexibility in capturing complex relationships between query and key vectors. In order to assess the effectiveness of our approach, we tested it against 21 and 18 distinct fault scenarios in TEP, and compared its performance with several established FDD techniques. The outcomes indicate that the method outperforms others in terms of accuracy, false alarm rate, and misclassification rate. This underscores the robustness and efficacy of the approach for FDD in intricate industrial processes.
