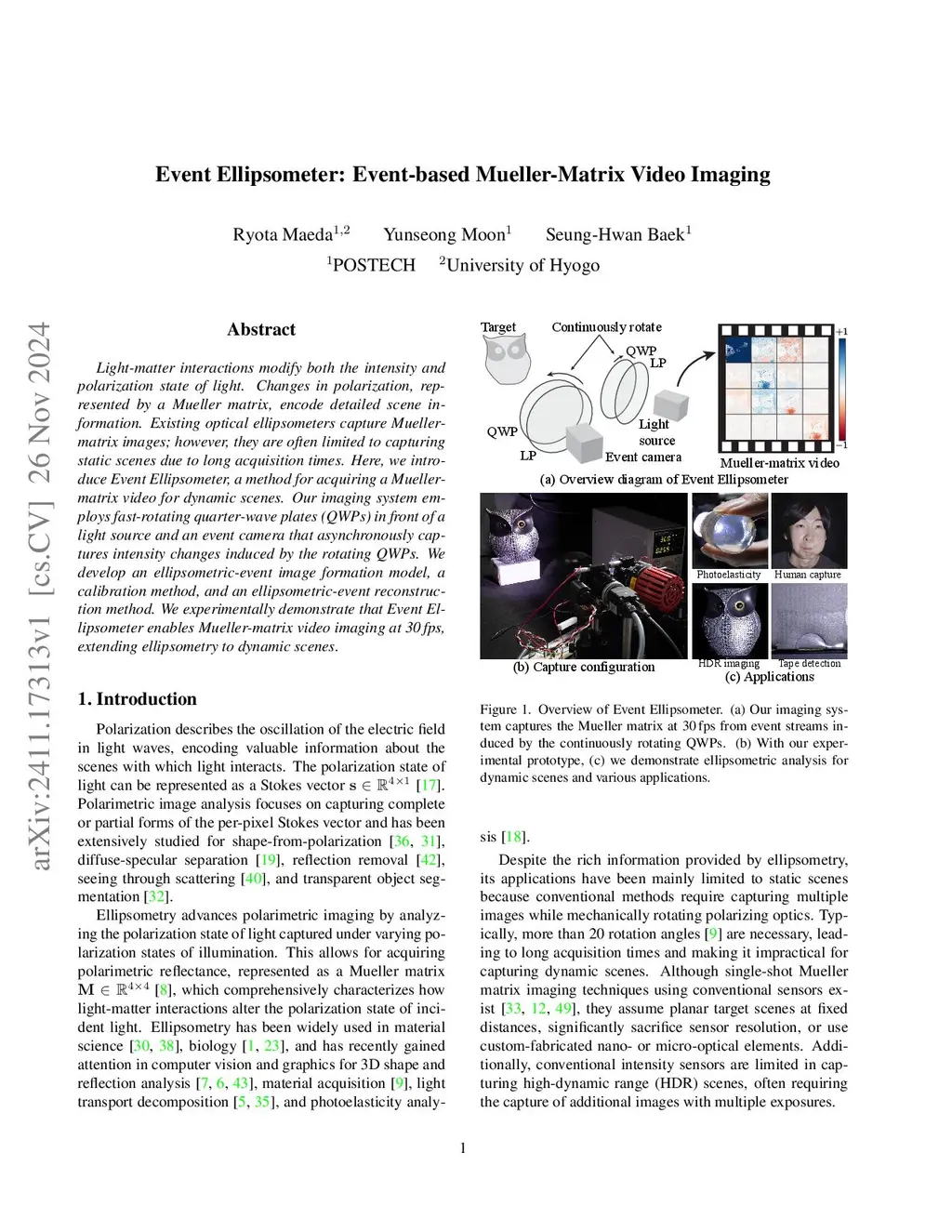

Event Ellipsometer: Event-based Mueller-Matrix Video Imaging

Light-matter interactions modify both the intensity and polarization state of light. Changes in polarization, represented by a Mueller matrix, encode detailed scene information. Existing optical ellipsometers capture Mueller-matrix images; however, they are often limited to capturing static scenes due to long acquisition times. Here, we introduce Event Ellipsometer, a method for acquiring a Mueller-matrix video for dynamic scenes. Our imaging system employs fast-rotating quarter-wave plates (QWPs) in front of a light source and an event camera that asynchronously captures intensity changes induced by the rotating QWPs. We develop an ellipsometric-event image formation model, a calibration method, and an ellipsometric-event reconstruction method. We experimentally demonstrate that Event Ellipsometer enables Mueller-matrix video imaging at 30fps, extending ellipsometry to dynamic scenes.

@article{maeda2025_2411.17313,
  title={ Event Ellipsometer: Event-based Mueller-Matrix Video Imaging },
  author={ Ryota Maeda and Yunseong Moon and Seung-Hwan Baek },
  journal={arXiv preprint arXiv:2411.17313},
  year={ 2025 }
}
