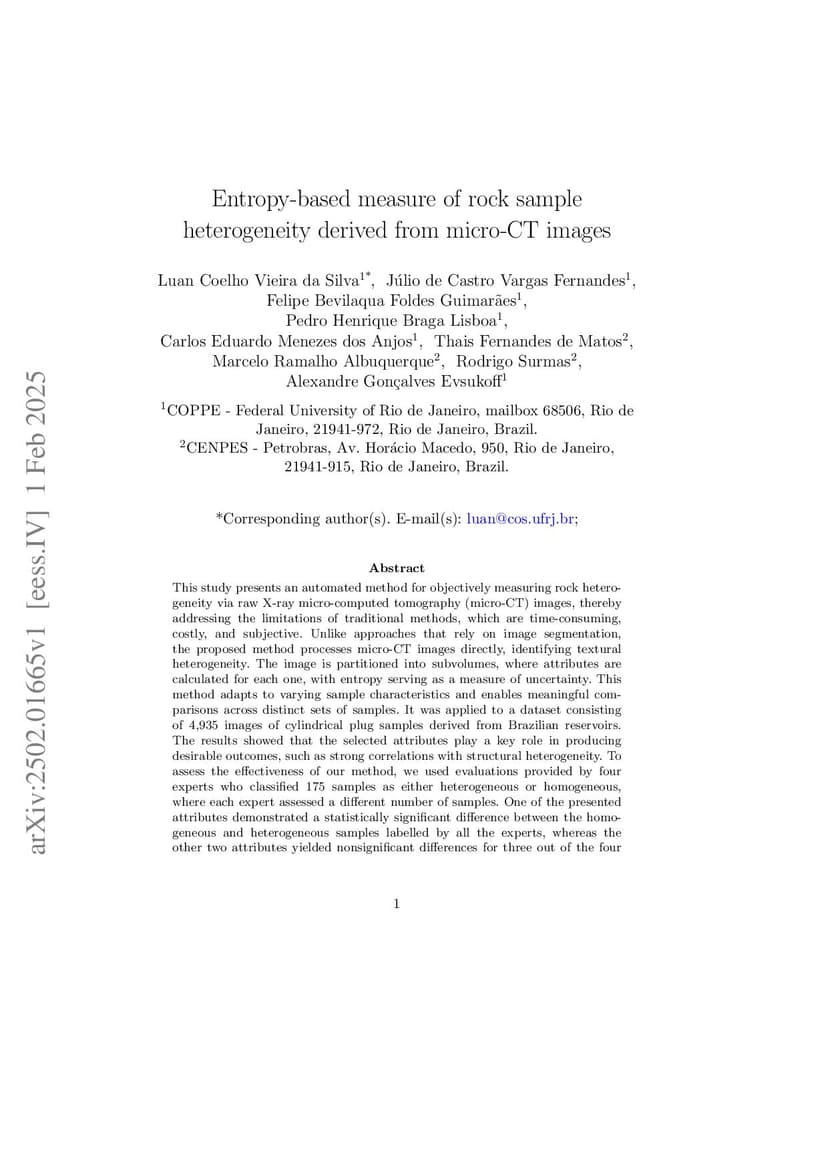

Entropy-based measure of rock sample heterogeneity derived from micro-CT images

This study presents an automated method for objectively measuring rock heterogeneity via raw X-ray micro-computed tomography (micro-CT) images, thereby addressing the limitations of traditional methods, which are time-consuming, costly, and subjective. Unlike approaches that rely on image segmentation, the proposed method processes micro-CT images directly, identifying textural heterogeneity. The image is partitioned into subvolumes, where attributes are calculated for each one, with entropy serving as a measure of uncertainty. This method adapts to varying sample characteristics and enables meaningful comparisons across distinct sets of samples. It was applied to a dataset consisting of 4,935 images of cylindrical plug samples derived from Brazilian reservoirs. The results showed that the selected attributes play a key role in producing desirable outcomes, such as strong correlations with structural heterogeneity. To assess the effectiveness of our method, we used evaluations provided by four experts who classified 175 samples as either heterogeneous or homogeneous, where each expert assessed a different number of samples. One of the presented attributes demonstrated a statistically significant difference between the homogeneous and heterogeneous samples labelled by all the experts, whereas the other two attributes yielded nonsignificant differences for three out of the four experts. The method was shown to better align with the expert choices than traditional textural attributes known for extracting heterogeneous properties from images. This textural heterogeneity measure provides an additional parameter that can assist in rock characterization, and the automated approach ensures easy reproduction and high cost-effectiveness.

@article{silva2025_2502.01665,
  title={ Entropy-based measure of rock sample heterogeneity derived from micro-CT images },
  author={ Luan Coelho Vieira Silva and Júlio de Castro Vargas Fernandes and Felipe Belilaqua Foldes Guimarães and Pedro Henrique Braga Lisboa and Carlos Eduardo Menezes dos Anjos and Thais Fernandes de Matos and Marcelo Ramalho Albuquerque and Rodrigo Surmas and Alexandre Gonçalves Evsukoff },
  journal={arXiv preprint arXiv:2502.01665},
  year={ 2025 }
}
