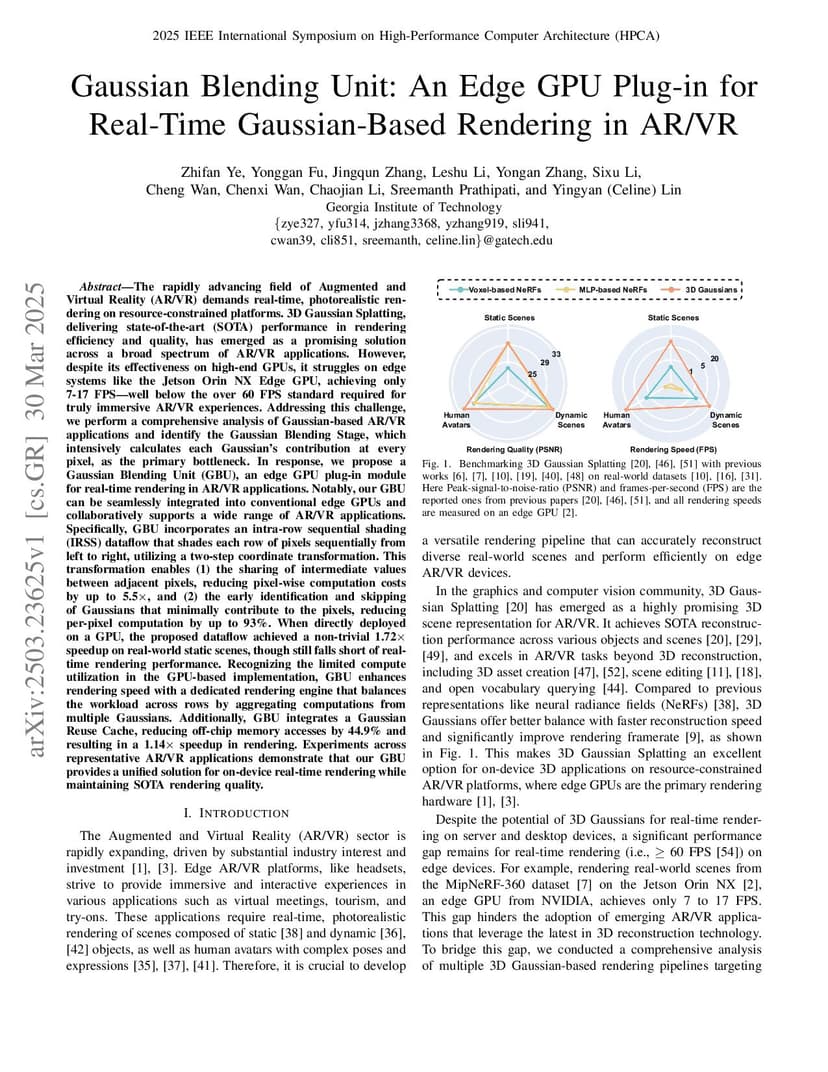

Gaussian Blending Unit: An Edge GPU Plug-in for Real-Time Gaussian-Based Rendering in AR/VR

The rapidly advancing field of Augmented and Virtual Reality (AR/VR) demands real-time, photorealistic rendering on resource-constrained platforms. 3D Gaussian Splatting, delivering state-of-the-art (SOTA) performance in rendering efficiency and quality, has emerged as a promising solution across a broad spectrum of AR/VR applications. However, despite its effectiveness on high-end GPUs, it struggles on edge systems like the Jetson Orin NX Edge GPU, achieving only 7-17 FPS -- well below the over 60 FPS standard required for truly immersive AR/VR experiences. Addressing this challenge, we perform a comprehensive analysis of Gaussian-based AR/VR applications and identify the Gaussian Blending Stage, which intensively calculates each Gaussian's contribution at every pixel, as the primary bottleneck. In response, we propose a Gaussian Blending Unit (GBU), an edge GPU plug-in module for real-time rendering in AR/VR applications. Notably, our GBU can be seamlessly integrated into conventional edge GPUs and collaboratively supports a wide range of AR/VR applications. Specifically, GBU incorporates an intra-row sequential shading (IRSS) dataflow that shades each row of pixels sequentially from left to right, utilizing a two-step coordinate transformation. When directly deployed on a GPU, the proposed dataflow achieved a non-trivial 1.72x speedup on real-world static scenes, though still falls short of real-time rendering performance. Recognizing the limited compute utilization in the GPU-based implementation, GBU enhances rendering speed with a dedicated rendering engine that balances the workload across rows by aggregating computations from multiple Gaussians. Experiments across representative AR/VR applications demonstrate that our GBU provides a unified solution for on-device real-time rendering while maintaining SOTA rendering quality.

@article{ye2025_2503.23625,
  title={ Gaussian Blending Unit: An Edge GPU Plug-in for Real-Time Gaussian-Based Rendering in AR/VR },
  author={ Zhifan Ye and Yonggan Fu and Jingqun Zhang and Leshu Li and Yongan Zhang and Sixu Li and Cheng Wan and Chenxi Wan and Chaojian Li and Sreemanth Prathipati and Yingyan Celine Lin },
  journal={arXiv preprint arXiv:2503.23625},
  year={ 2025 }
}
