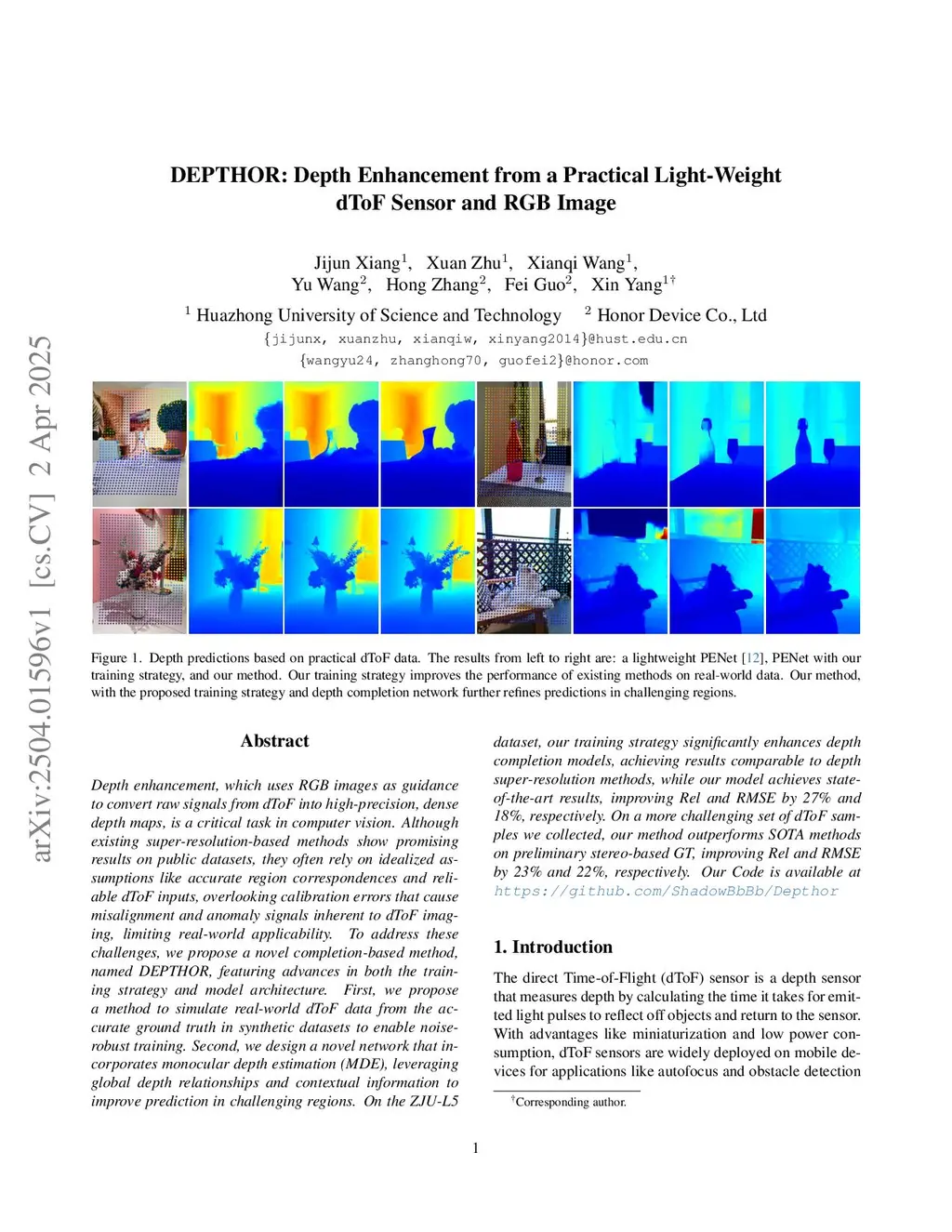

DEPTHOR: Depth Enhancement from a Practical Light-Weight dToF Sensor and RGB Image

Depth enhancement, which uses RGB images as guidance to convert raw signals from dToF into high-precision, dense depth maps, is a critical task in computer vision. Although existing super-resolution-based methods show promising results on public datasets, they often rely on idealized assumptions like accurate region correspondences and reliable dToF inputs, overlooking calibration errors that cause misalignment and anomaly signals inherent to dToF imaging, limiting real-world applicability. To address these challenges, we propose a novel completion-based method, named DEPTHOR, featuring advances in both the training strategy and model architecture. First, we propose a method to simulate real-world dToF data from the accurate ground truth in synthetic datasets to enable noise-robust training. Second, we design a novel network that incorporates monocular depth estimation (MDE), leveraging global depth relationships and contextual information to improve prediction in challenging regions. On the ZJU-L5 dataset, our training strategy significantly enhances depth completion models, achieving results comparable to depth super-resolution methods, while our model achieves state-of-the-art results, improving Rel and RMSE by 27% and 18%, respectively. On a more challenging set of dToF samples we collected, our method outperforms SOTA methods on preliminary stereo-based GT, improving Rel and RMSE by 23% and 22%, respectively. Our Code is available atthis https URL

@article{xiang2025_2504.01596,
  title={ DEPTHOR: Depth Enhancement from a Practical Light-Weight dToF Sensor and RGB Image },
  author={ Jijun Xiang and Xuan Zhu and Xianqi Wang and Yu Wang and Hong Zhang and Fei Guo and Xin Yang },
  journal={arXiv preprint arXiv:2504.01596},
  year={ 2025 }
}
