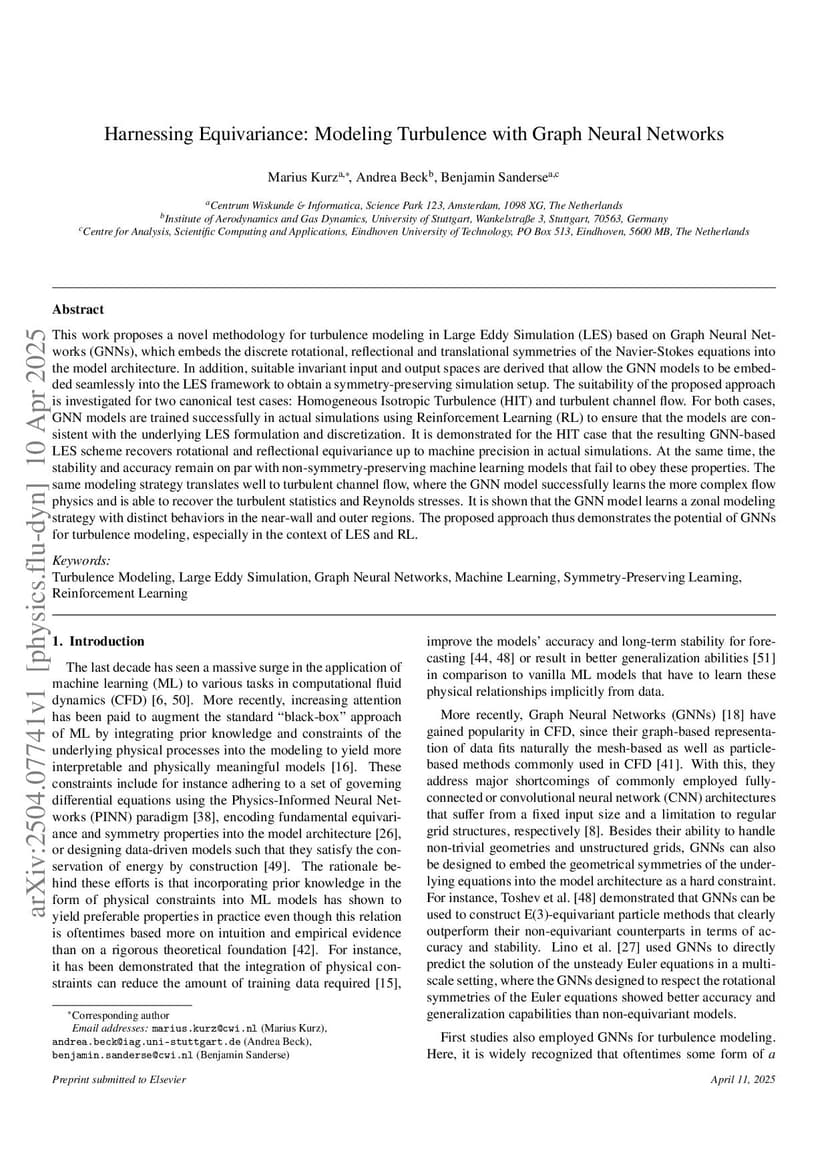

This work proposes a novel methodology for turbulence modeling in Large Eddy Simulation (LES) based on Graph Neural Networks (GNNs), which embeds the discrete rotational, reflectional and translational symmetries of the Navier-Stokes equations into the model architecture. In addition, suitable invariant input and output spaces are derived that allow the GNN models to be embedded seamlessly into the LES framework to obtain a symmetry-preserving simulation setup. The suitability of the proposed approach is investigated for two canonical test cases: Homogeneous Isotropic Turbulence (HIT) and turbulent channel flow. For both cases, GNN models are trained successfully in actual simulations using Reinforcement Learning (RL) to ensure that the models are consistent with the underlying LES formulation and discretization. It is demonstrated for the HIT case that the resulting GNN-based LES scheme recovers rotational and reflectional equivariance up to machine precision in actual simulations. At the same time, the stability and accuracy remain on par with non-symmetry-preserving machine learning models that fail to obey these properties. The same modeling strategy translates well to turbulent channel flow, where the GNN model successfully learns the more complex flow physics and is able to recover the turbulent statistics and Reynolds stresses. It is shown that the GNN model learns a zonal modeling strategy with distinct behaviors in the near-wall and outer regions. The proposed approach thus demonstrates the potential of GNNs for turbulence modeling, especially in the context of LES and RL.
View on arXiv@article{kurz2025_2504.07741,
title={ Harnessing Equivariance: Modeling Turbulence with Graph Neural Networks },
author={ Marius Kurz and Andrea Beck and Benjamin Sanderse },
journal={arXiv preprint arXiv:2504.07741},
year={ 2025 }
}
