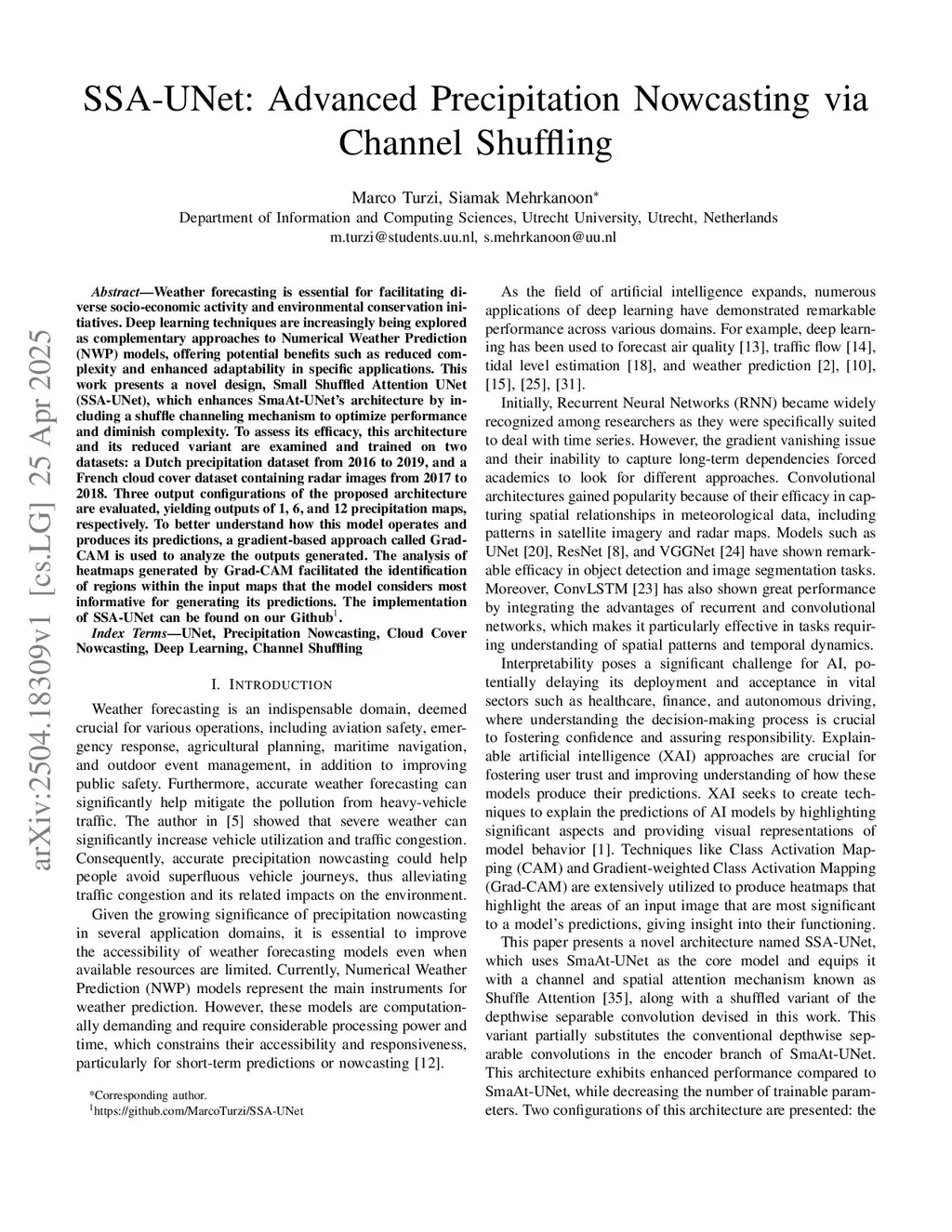

SSA-UNet: Advanced Precipitation Nowcasting via Channel Shuffling

Weather forecasting is essential for facilitating diverse socio-economic activity and environmental conservation initiatives. Deep learning techniques are increasingly being explored as complementary approaches to Numerical Weather Prediction (NWP) models, offering potential benefits such as reduced complexity and enhanced adaptability in specific applications. This work presents a novel design, Small Shuffled Attention UNet (SSA-UNet), which enhances SmaAt-UNet's architecture by including a shuffle channeling mechanism to optimize performance and diminish complexity. To assess its efficacy, this architecture and its reduced variant are examined and trained on two datasets: a Dutch precipitation dataset from 2016 to 2019, and a French cloud cover dataset containing radar images from 2017 to 2018. Three output configurations of the proposed architecture are evaluated, yielding outputs of 1, 6, and 12 precipitation maps, respectively. To better understand how this model operates and produces its predictions, a gradient-based approach called Grad-CAM is used to analyze the outputs generated. The analysis of heatmaps generated by Grad-CAM facilitated the identification of regions within the input maps that the model considers most informative for generating its predictions. The implementation of SSA-UNet can be found on our Github\footnote{\href{this https URL}{this https URL}}

@article{turzi2025_2504.18309,
  title={ SSA-UNet: Advanced Precipitation Nowcasting via Channel Shuffling },
  author={ Marco Turzi and Siamak Mehrkanoon },
  journal={arXiv preprint arXiv:2504.18309},
  year={ 2025 }
}
