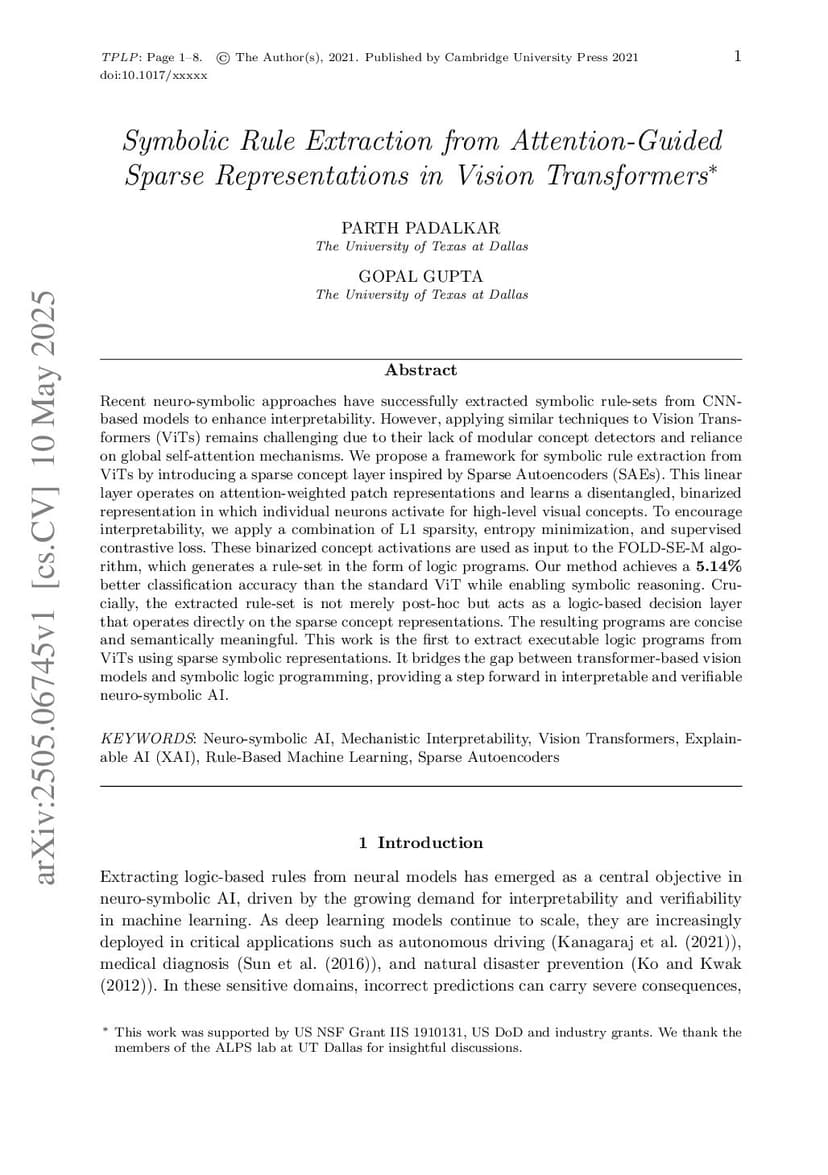

Symbolic Rule Extraction from Attention-Guided Sparse Representations in Vision Transformers

Recent neuro-symbolic approaches have successfully extracted symbolic rule-sets from CNN-based models to enhance interpretability. However, applying similar techniques to Vision Transformers (ViTs) remains challenging due to their lack of modular concept detectors and reliance on global self-attention mechanisms. We propose a framework for symbolic rule extraction from ViTs by introducing a sparse concept layer inspired by Sparse Autoencoders (SAEs). This linear layer operates on attention-weighted patch representations and learns a disentangled, binarized representation in which individual neurons activate for high-level visual concepts. To encourage interpretability, we apply a combination of L1 sparsity, entropy minimization, and supervised contrastive loss. These binarized concept activations are used as input to the FOLD-SE-M algorithm, which generates a rule-set in the form of logic programs. Our method achieves a 5.14% better classification accuracy than the standard ViT while enabling symbolic reasoning. Crucially, the extracted rule-set is not merely post-hoc but acts as a logic-based decision layer that operates directly on the sparse concept representations. The resulting programs are concise and semantically meaningful. This work is the first to extract executable logic programs from ViTs using sparse symbolic representations. It bridges the gap between transformer-based vision models and symbolic logic programming, providing a step forward in interpretable and verifiable neuro-symbolic AI.

@article{padalkar2025_2505.06745,
  title={ Symbolic Rule Extraction from Attention-Guided Sparse Representations in Vision Transformers },
  author={ Parth Padalkar and Gopal Gupta },
  journal={arXiv preprint arXiv:2505.06745},
  year={ 2025 }
}
