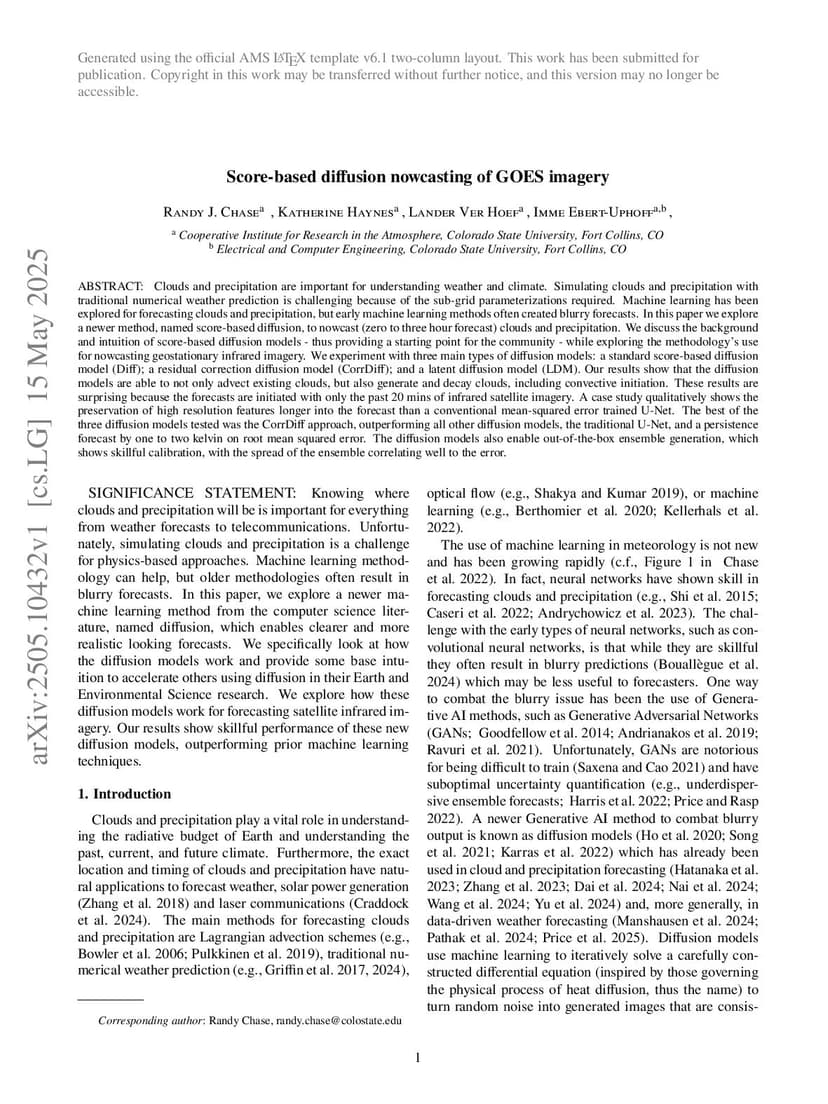

Score-based diffusion nowcasting of GOES imagery

Clouds and precipitation are important for understanding weather and climate. Simulating clouds and precipitation with traditional numerical weather prediction is challenging because of the sub-grid parameterizations required. Machine learning has been explored for forecasting clouds and precipitation, but early machine learning methods often created blurry forecasts. In this paper we explore a newer method, named score-based diffusion, to nowcast (zero to three hour forecast) clouds and precipitation. We discuss the background and intuition of score-based diffusion models - thus providing a starting point for the community - while exploring the methodology's use for nowcasting geostationary infrared imagery. We experiment with three main types of diffusion models: a standard score-based diffusion model (Diff); a residual correction diffusion model (CorrDiff); and a latent diffusion model (LDM). Our results show that the diffusion models are able to not only advect existing clouds, but also generate and decay clouds, including convective initiation. These results are surprising because the forecasts are initiated with only the past 20 mins of infrared satellite imagery. A case study qualitatively shows the preservation of high resolution features longer into the forecast than a conventional mean-squared error trained U-Net. The best of the three diffusion models tested was the CorrDiff approach, outperforming all other diffusion models, the traditional U-Net, and a persistence forecast by one to two kelvin on root mean squared error. The diffusion models also enable out-of-the-box ensemble generation, which shows skillful calibration, with the spread of the ensemble correlating well to the error.

@article{chase2025_2505.10432,
  title={ Score-based diffusion nowcasting of GOES imagery },
  author={ Randy J. Chase and Katherine Haynes and Lander Ver Hoef and Imme Ebert-Uphoff },
  journal={arXiv preprint arXiv:2505.10432},
  year={ 2025 }
}
