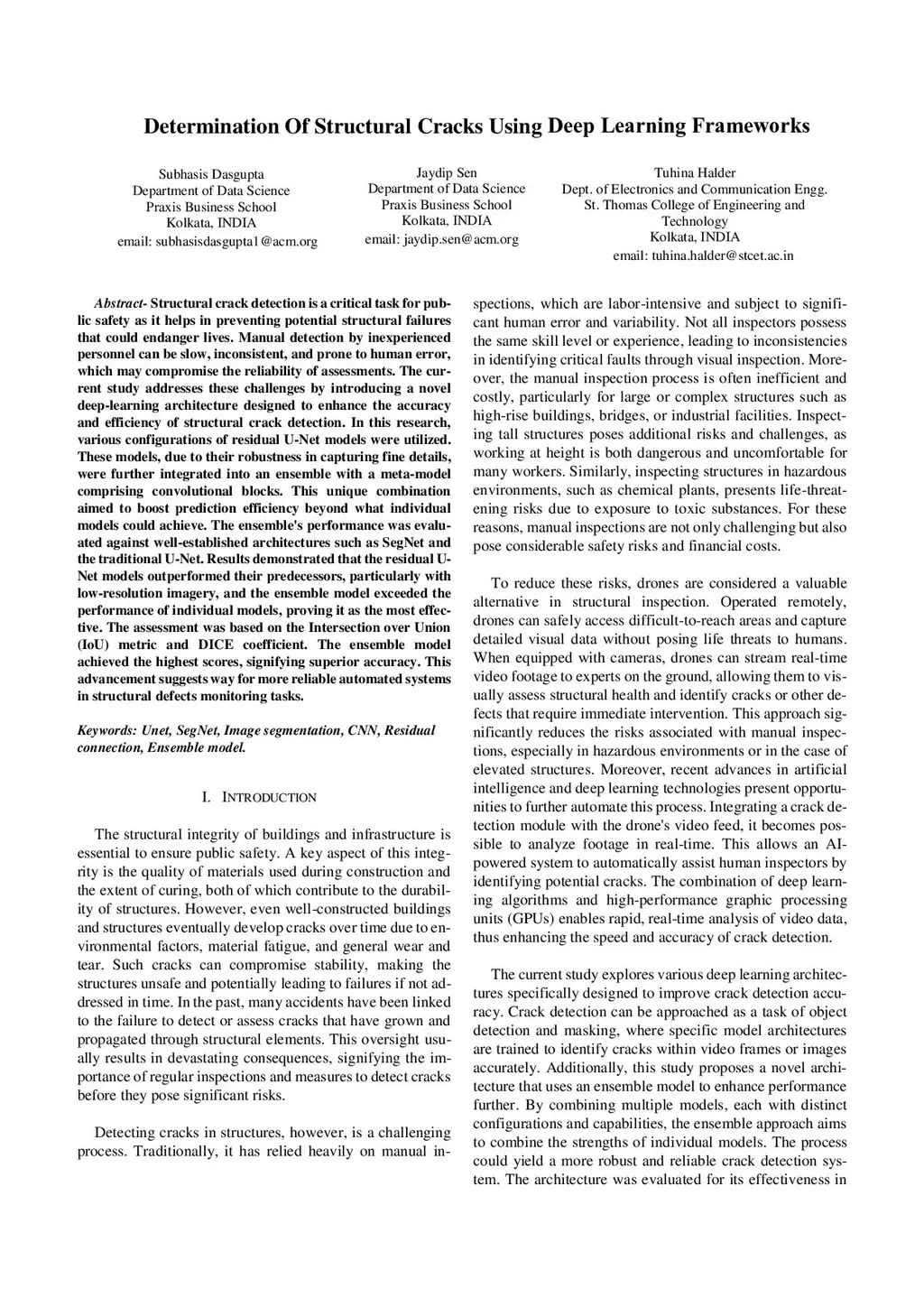

Determination Of Structural Cracks Using Deep Learning Frameworks

Subhasis Dasgupta
Jaydip Sen
Tuhina Halder
Main:6 Pages
8 Figures
1 Tables
Abstract

Structural crack detection is a critical task for public safety as it helps in preventing potential structural failures that could endanger lives. Manual detection by inexperienced personnel can be slow, inconsistent, and prone to human error, which may compromise the reliability of assessments. The current study addresses these challenges by introducing a novel deep-learning architecture designed to enhance the accuracy and efficiency of structural crack detection. In this research, various configurations of residual U-Net models were utilized. These models, due to their robustness in capturing fine details, were further integrated into an ensemble with a meta-model comprising convolutional blocks. This unique combination aimed to boost prediction efficiency beyond what individual models could achieve. The ensemble's performance was evaluated against well-established architectures such as SegNet and the traditional U-Net. Results demonstrated that the residual U-Net models outperformed their predecessors, particularly with low-resolution imagery, and the ensemble model exceeded the performance of individual models, proving it as the most effective. The assessment was based on the Intersection over Union (IoU) metric and DICE coefficient. The ensemble model achieved the highest scores, signifying superior accuracy. This advancement suggests way for more reliable automated systems in structural defects monitoring tasks.

View on arXiv
@article{dasgupta2025_2507.02416,
  title={ Determination Of Structural Cracks Using Deep Learning Frameworks },
  author={ Subhasis Dasgupta and Jaydip Sen and Tuhina Halder },
  journal={arXiv preprint arXiv:2507.02416},
  year={ 2025 }
}
Comments on this paper
