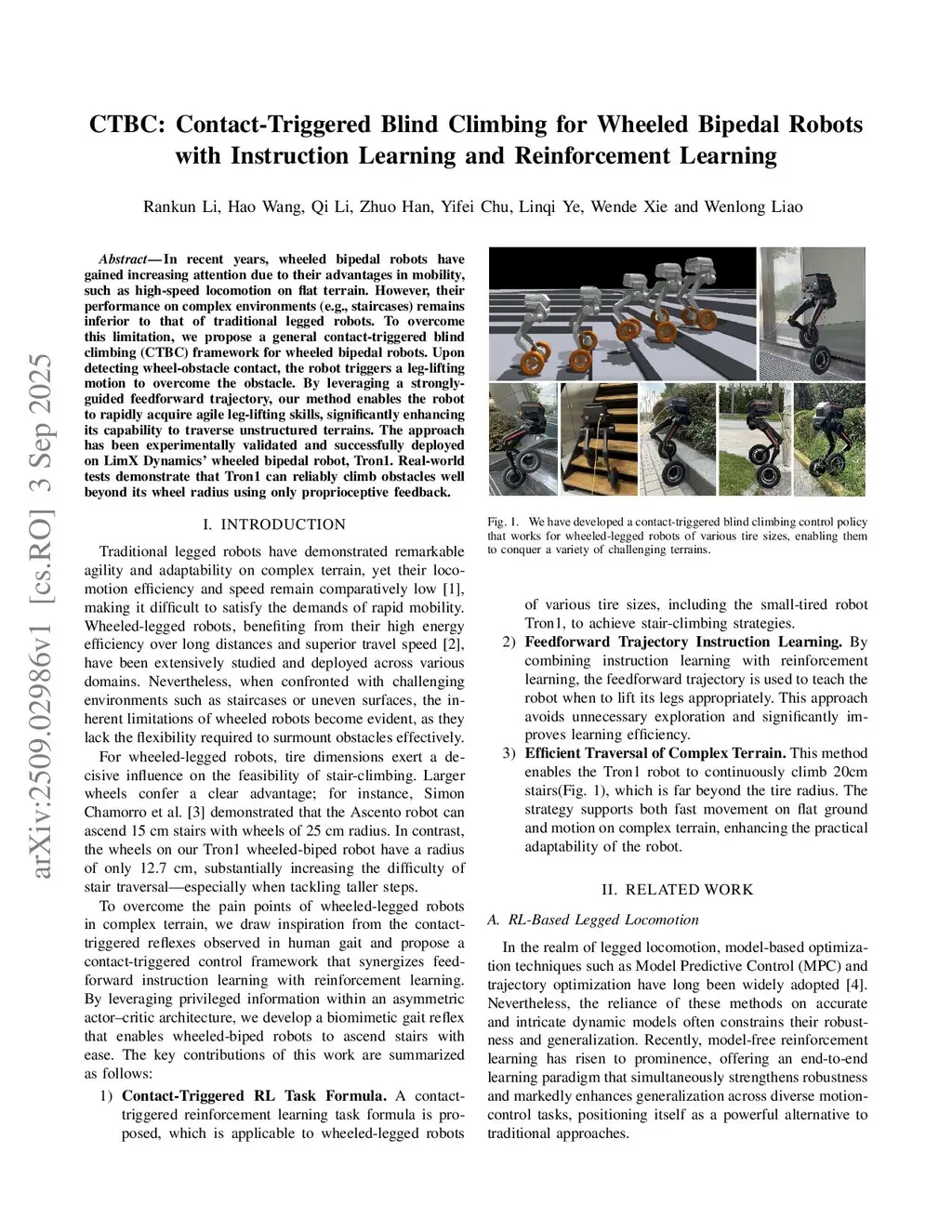

CTBC: Contact-Triggered Blind Climbing for Wheeled Bipedal Robots with Instruction Learning and Reinforcement Learning

Main:7 Pages
10 Figures
Bibliography:1 Pages
1 Tables
Abstract

In recent years, wheeled bipedal robots have garnered significant attention due to their exceptional mobility on flat terrain. However, while stair climbing has been achieved in prior studies, these existing methods often suffer from a severe lack of versatility, making them difficult to adapt to varying hardware specifications or diverse complex terrains. To overcome these limitations, we propose a generalized Contact-Triggered Blind Climbing (CTBC) framework. Upon detecting wheel-obstacle contact, the framework triggers a leg-lifting motion integrated with a strongly-guided feedforward trajectory. This allows the robot to rapidly acquire agile climbing skills, significantly enhancing its capability to traverse unstructured environments. Distinct from previous approaches, CTBC demonstrates superior robustness and adaptability, having been validated across multiple wheeled bipedal platforms with different wheel radii and tire materials. Real-world experiments demonstrate that, relying solely on proprioceptive feedback, the proposed framework enables robots to achieve reliable and continuous climbing over obstacles well beyond their wheel radius.
