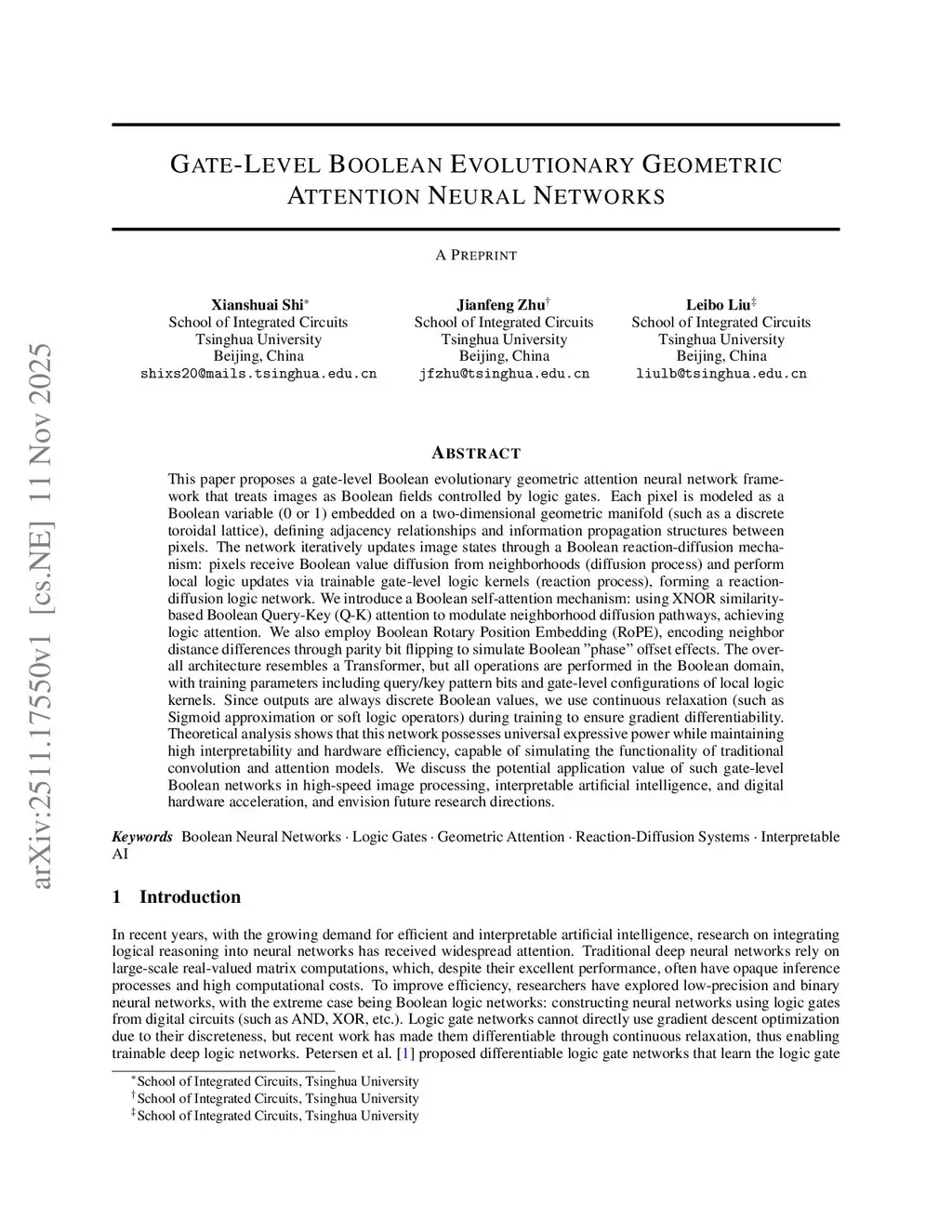

Gate-level boolean evolutionary geometric attention neural networks

This paper presents a gate-level Boolean evolutionary geometric attention neural network that models images as Boolean fields governed by logic gates. Each pixel is a Boolean variable (0 or 1) embedded on a two-dimensional geometric manifold (for example, a discrete toroidal lattice), which defines adjacency and information propagation among pixels. The network updates image states through a Boolean reaction-diffusion mechanism: pixels receive Boolean diffusion from neighboring pixels (diffusion process) and perform local logic updates via trainable gate-level logic kernels (reaction process), forming a reaction-diffusion logic network.A Boolean self-attention mechanism is introduced, using XNOR-based Boolean Query-Key (Q-K) attention to modulate neighborhood diffusion pathways and realize logic attention. We also propose Boolean Rotary Position Embedding (RoPE), which encodes relative distances by parity-bit flipping to simulate Boolean ``phase'' offsets.The overall structure resembles a Transformer but operates entirely in the Boolean domain. Trainable parameters include Q-K pattern bits and gate-level kernel configurations. Because outputs are discrete, continuous relaxation methods (such as sigmoid approximation or soft-logic operators) ensure differentiable training.Theoretical analysis shows that the network achieves universal expressivity, interpretability, and hardware efficiency, capable of reproducing convolutional and attention mechanisms. Applications include high-speed image processing, interpretable artificial intelligence, and digital hardware acceleration, offering promising future research directions.
