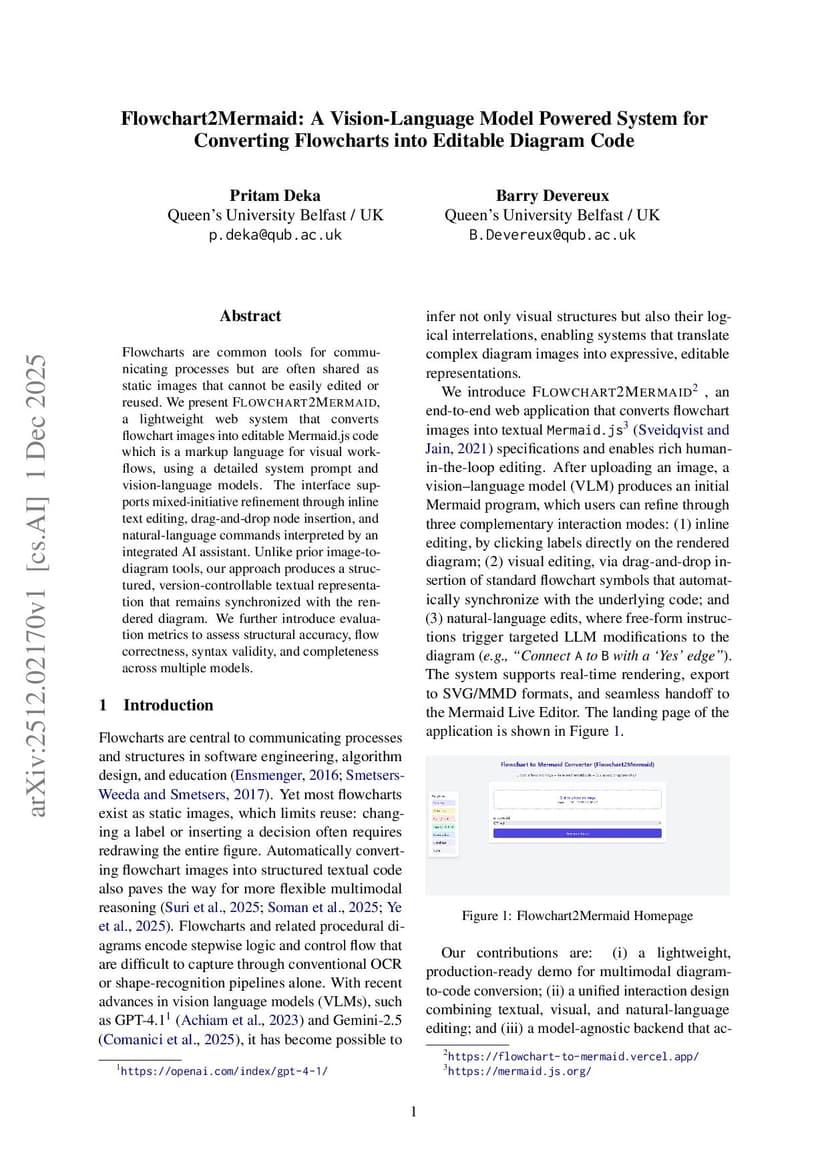

Flowchart2Mermaid: A Vision-Language Model Powered System for Converting Flowcharts into Editable Diagram Code

Flowcharts are common tools for communicating processes but are often shared as static images that cannot be easily edited or reused. We present Flowchart2Mermaid, a lightweight web system that converts flowchart images into editablethis http URLcode which is a markup language for visual workflows, using a detailed system prompt and vision-language models. The interface supports mixed-initiative refinement through inline text editing, drag-and-drop node insertion, and natural-language commands interpreted by an integrated AI assistant. Unlike prior image-to-diagram tools, our approach produces a structured, version-controllable textual representation that remains synchronized with the rendered diagram. We further introduce evaluation metrics to assess structural accuracy, flow correctness, syntax validity, and completeness across multiple models.
