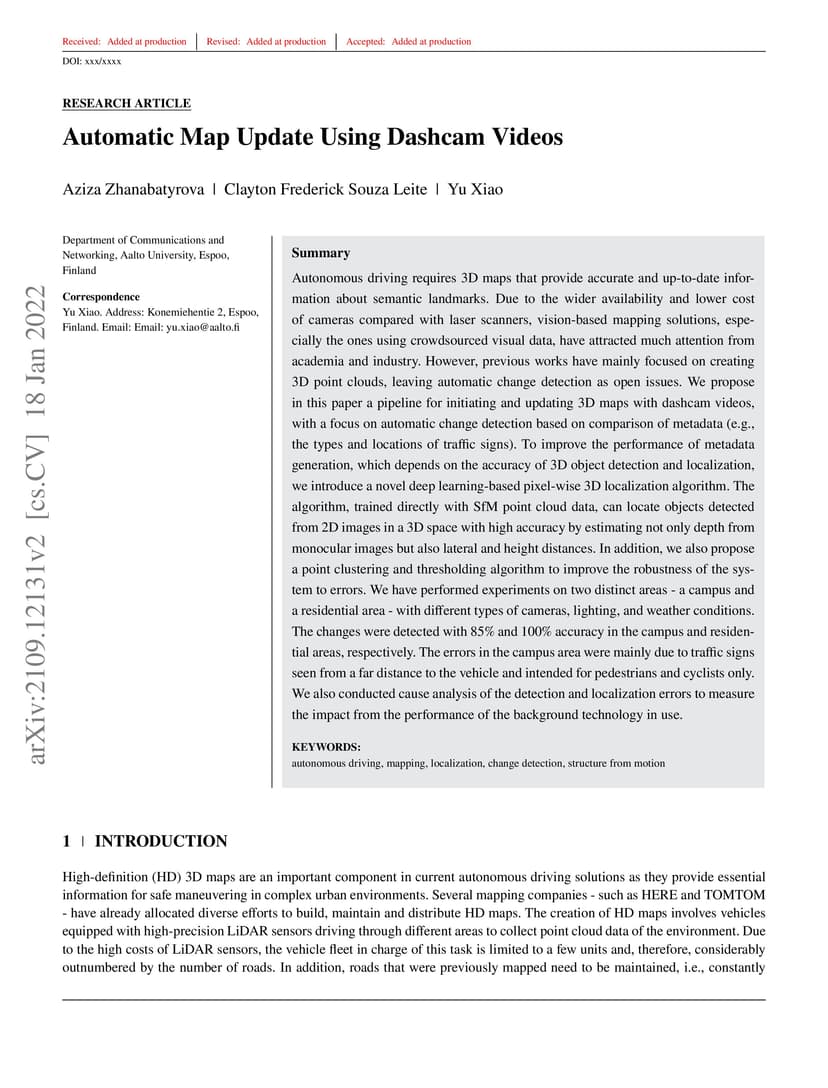

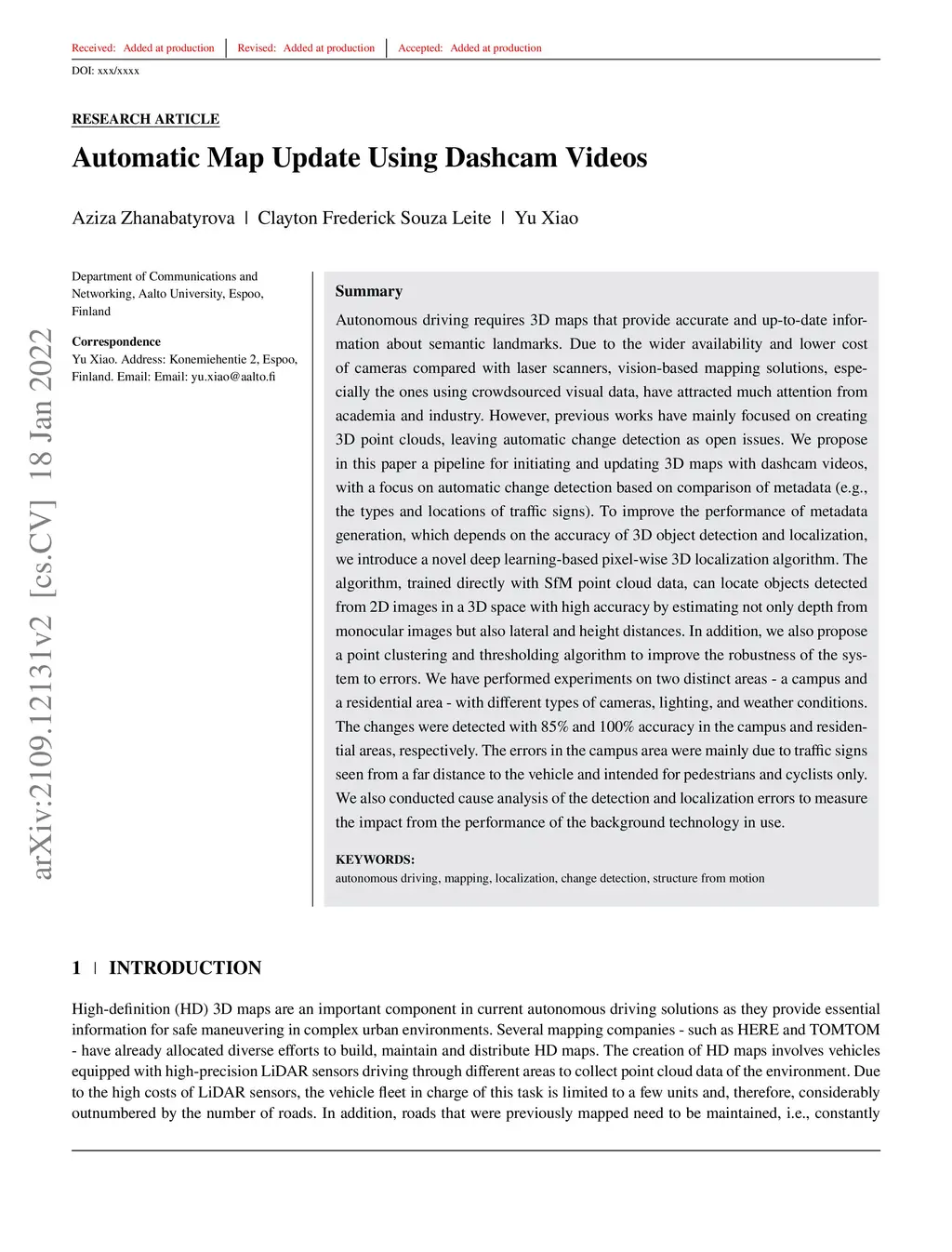

Automatic Map Update Using Dashcam Videos

24 September 2021
Aziza Zhanabatyrova
Clayton Frederick Souza Leite
Yu Xiao
    3DPC
ArXivPDFHTML
Abstract

Autonomous driving requires 3D maps that provide accurate and up-to-date information about semantic landmarks. Due to the wider availability and lower cost of cameras compared with laser scanners, vision-based mapping solutions, especially the ones using crowdsourced visual data, have attracted much attention from academia and industry. However, previous works have mainly focused on creating 3D point clouds, leaving automatic change detection as open issues. We propose in this paper a pipeline for initiating and updating 3D maps with dashcam videos, with a focus on automatic change detection based on comparison of metadata (e.g., the types and locations of traffic signs). To improve the performance of metadata generation, which depends on the accuracy of 3D object detection and localization, we introduce a novel deep learning-based pixel-wise 3D localization algorithm. The algorithm, trained directly with SfM point cloud data, can locate objects detected from 2D images in a 3D space with high accuracy by estimating not only depth from monocular images but also lateral and height distances. In addition, we also propose a point clustering and thresholding algorithm to improve the robustness of the system to errors. We have performed experiments on two distinct areas - a campus and a residential area - with different types of cameras, lighting, and weather conditions. The changes were detected with 85% and 100% accuracy in the campus and residential areas, respectively. The errors in the campus area were mainly due to traffic signs seen from a far distance to the vehicle and intended for pedestrians and cyclists only. We also conducted cause analysis of the detection and localization errors to measure the impact from the performance of the background technology in use.

View on arXiv
