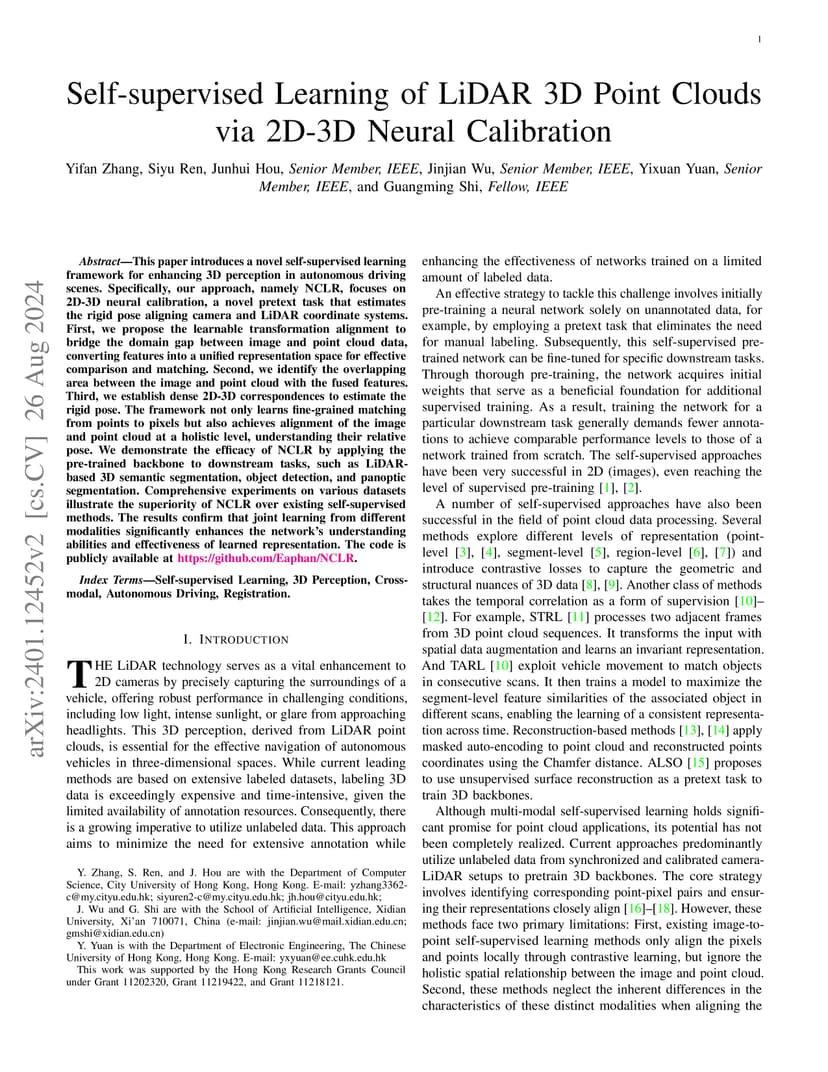

Self-supervised Learning of LiDAR 3D Point Clouds via 2D-3D Neural Calibration

This paper introduces a novel self-supervised learning framework for enhancing 3D perception in autonomous driving scenes. Specifically, our approach, namely NCLR, focuses on 2D-3D neural calibration, a novel pretext task that estimates the rigid pose aligning camera and LiDAR coordinate systems. First, we propose the learnable transformation alignment to bridge the domain gap between image and point cloud data, converting features into a unified representation space for effective comparison and matching. Second, we identify the overlapping area between the image and point cloud with the fused features. Third, we establish dense 2D-3D correspondences to estimate the rigid pose. The framework not only learns fine-grained matching from points to pixels but also achieves alignment of the image and point cloud at a holistic level, understanding their relative pose. We demonstrate the efficacy of NCLR by applying the pre-trained backbone to downstream tasks, such as LiDAR-based 3D semantic segmentation, object detection, and panoptic segmentation. Comprehensive experiments on various datasets illustrate the superiority of NCLR over existing self-supervised methods. The results confirm that joint learning from different modalities significantly enhances the network's understanding abilities and effectiveness of learned representation. The code is publicly available atthis https URL.

@article{zhang2025_2401.12452,
  title={ Self-supervised Learning of LiDAR 3D Point Clouds via 2D-3D Neural Calibration },
  author={ Yifan Zhang and Siyu Ren and Junhui Hou and Jinjian Wu and Yixuan Yuan and Guangming Shi },
  journal={arXiv preprint arXiv:2401.12452},
  year={ 2025 }
}
