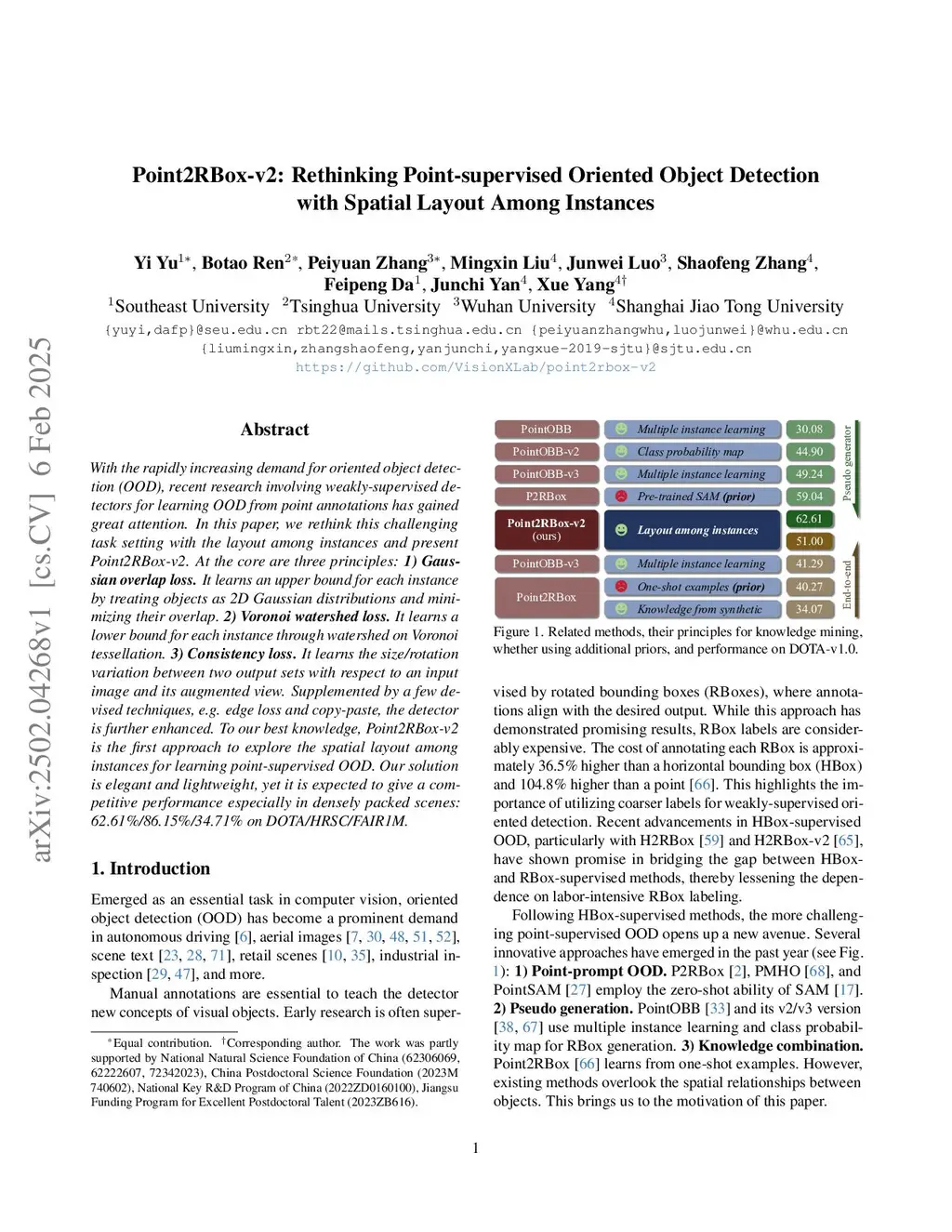

Point2RBox-v2: Rethinking Point-supervised Oriented Object Detection with Spatial Layout Among Instances

With the rapidly increasing demand for oriented object detection (OOD), recent research involving weakly-supervised detectors for learning OOD from point annotations has gained great attention. In this paper, we rethink this challenging task setting with the layout among instances and present Point2RBox-v2. At the core are three principles: 1) Gaussian overlap loss. It learns an upper bound for each instance by treating objects as 2D Gaussian distributions and minimizing their overlap. 2) Voronoi watershed loss. It learns a lower bound for each instance through watershed on Voronoi tessellation. 3) Consistency loss. It learns the size/rotation variation between two output sets with respect to an input image and its augmented view. Supplemented by a few devised techniques, e.g. edge loss and copy-paste, the detector is further enhanced. To our best knowledge, Point2RBox-v2 is the first approach to explore the spatial layout among instances for learning point-supervised OOD. Our solution is elegant and lightweight, yet it is expected to give a competitive performance especially in densely packed scenes: 62.61%/86.15%/34.71% on DOTA/HRSC/FAIR1M. Code is available atthis https URL.

@article{yu2025_2502.04268,
  title={ Point2RBox-v2: Rethinking Point-supervised Oriented Object Detection with Spatial Layout Among Instances },
  author={ Yi Yu and Botao Ren and Peiyuan Zhang and Mingxin Liu and Junwei Luo and Shaofeng Zhang and Feipeng Da and Junchi Yan and Xue Yang },
  journal={arXiv preprint arXiv:2502.04268},
  year={ 2025 }
}
