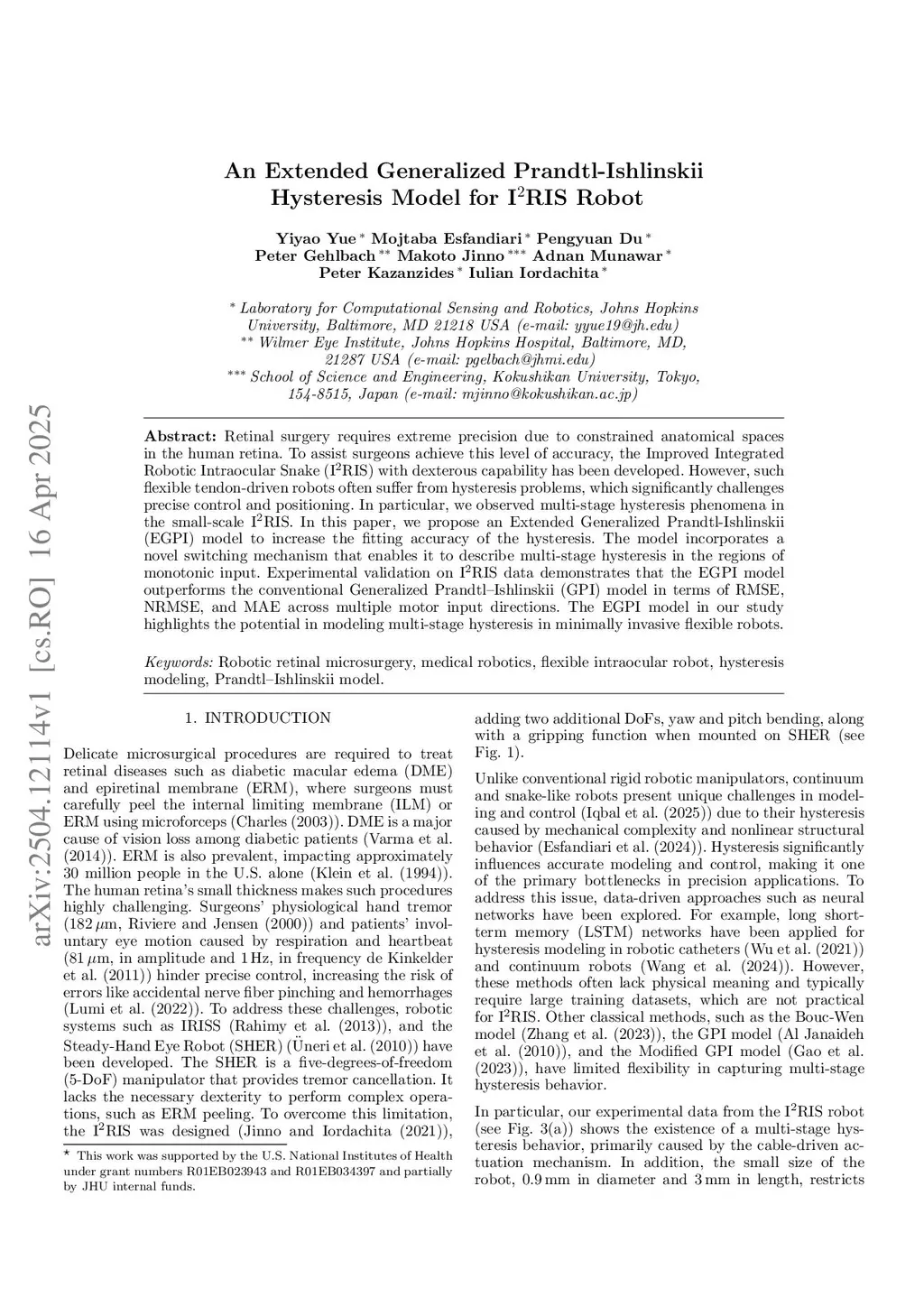

An Extended Generalized Prandtl-Ishlinskii Hysteresis Model for I2RIS Robot

Retinal surgery requires extreme precision due to constrained anatomical spaces in the human retina. To assist surgeons achieve this level of accuracy, the Improved Integrated Robotic Intraocular Snake (I2RIS) with dexterous capability has been developed. However, such flexible tendon-driven robots often suffer from hysteresis problems, which significantly challenges precise control and positioning. In particular, we observed multi-stage hysteresis phenomena in the small-scale I2RIS. In this paper, we propose an Extended Generalized Prandtl-Ishlinskii (EGPI) model to increase the fitting accuracy of the hysteresis. The model incorporates a novel switching mechanism that enables it to describe multi-stage hysteresis in the regions of monotonic input. Experimental validation on I2RIS data demonstrate that the EGPI model outperforms the conventional Generalized Prandtl-Ishlinskii (GPI) model in terms of RMSE, NRMSE, and MAE across multiple motor input directions. The EGPI model in our study highlights the potential in modeling multi-stage hysteresis in minimally invasive flexible robots.

@article{yue2025_2504.12114,
  title={ An Extended Generalized Prandtl-Ishlinskii Hysteresis Model for I2RIS Robot },
  author={ Yiyao Yue and Mojtaba Esfandiari and Pengyuan Du and Peter Gehlbach and Makoto Jinno and Adnan Munawar and Peter Kazanzides and Iulian Iordachita },
  journal={arXiv preprint arXiv:2504.12114},
  year={ 2025 }
}
